Switchers

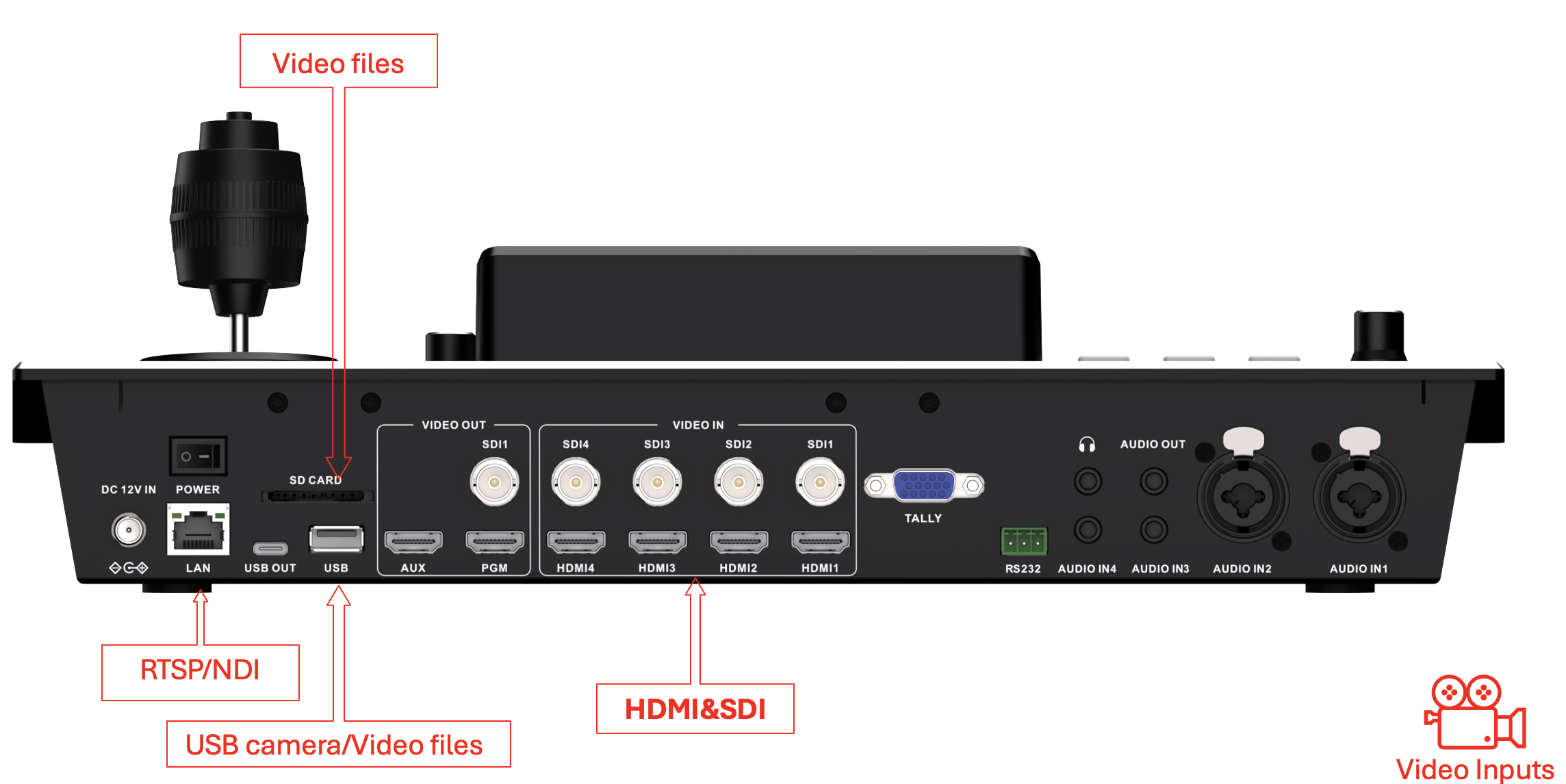

HDMI: IN1/2 support 4K60, IN3/4 support 1080P60

SDI: 4* SDI inputs, 1080P60 supported

USB: UVC-compatible camera input, up to 1080P30

NDI / RTSP: Network stream input, 1080P60

ROM / SD / USB Playback: MP4, MOV, TS, FLV file playback up to 1080P60

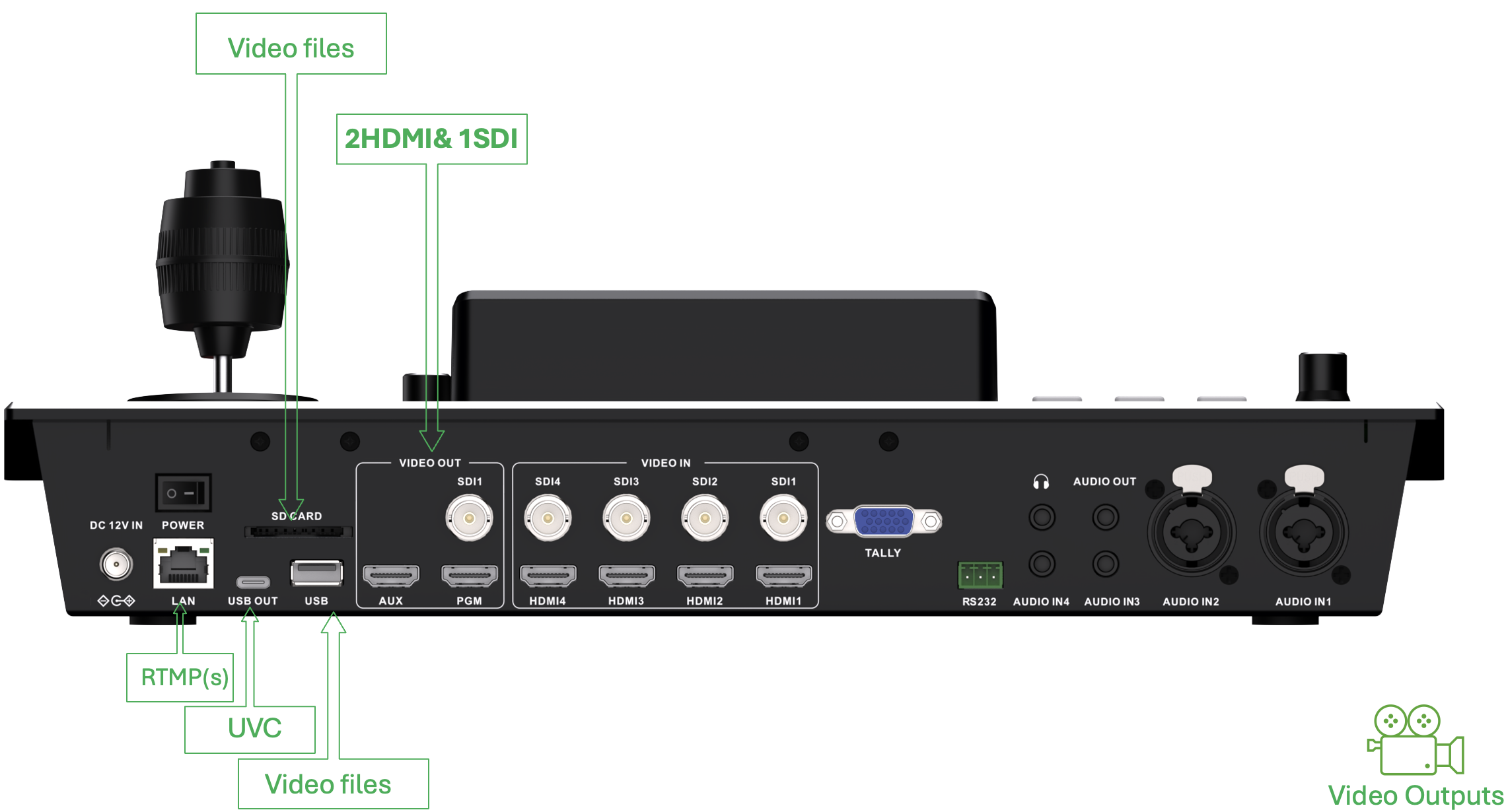

SDI Out: 1x 3G-SDI PGM output (1080P60)

HDMI Out: PGM / PVW / MV / Clean PGM / Clean PVW selectable

Multiview: Vertical or horizontal layout supported

Streaming: Dual RTMP(S) stream to YouTube, Facebook, or custom server

USB Out: UVC streaming output (1080P60)

Input: 2x XLR (with phantom), 2x 3.5mm stereo

Embedded: Audio via HDMI / SDI / USB supported

Output: Audio Output: 1 * 3.5mm, Headphone Monitoring: 1 * 3.5mm

PTZ: VISCA over IP & RS232 serial supported

Tally: DB15 standard TALLY interface

Serial: Phoenix RS232 port

Web UI: Built-in web interface for control & configuration

Companion: Compatible with Bitfocus Companion via network

SD Card: Up to 64GB, supports 1080P60 recording/playback

USB Drive: FAT32/exFAT supported, Up to 2TB, 1080P60 recording/playback

Internal ROM: Preloaded with demo clips for playback
